Lenco Marine 100 Series Trim Tab Kits

100 Series Trim Tab Kits

Backed by 30 years of reliable and robust actuation, Lenco trim tabs make your boat ride smoother, drier, faster and safer.

100 Series Trim Tab Kits

Explore the full range of Lenco 100 Series trim tab kits

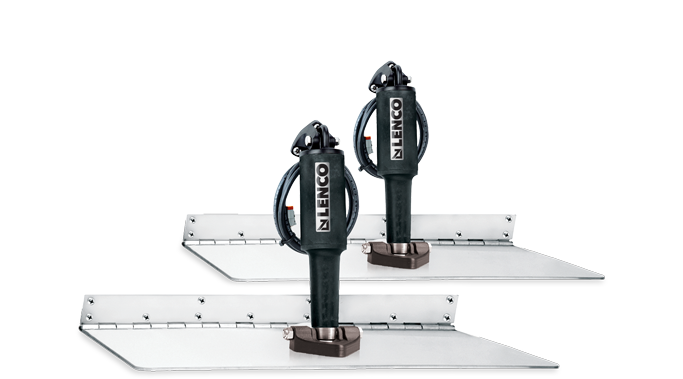

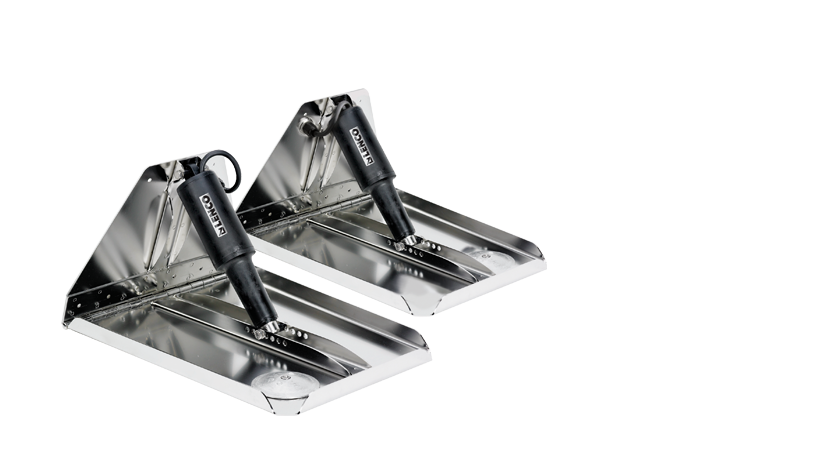

Standard Mount Trim Tab Kits (12V)

Part number: 15000-101

The Series that started the electric revolution! Our original Trim Tab design is still our most popular.

Suitable for boat lengths from 14' (4.3m) - 69' (21m) for Standard Finish, 16' (4.9m) - 30' (9.1m) for Electro-Polished.

Product details

2 x 12-gauge 304 stainless steel standard finish blades or electro-polished blades
2 x actuators with 6' (1.8 m) leads and Deutsch connectors
2 x actuator extension wiring harnesses - 20’ (6.1 m) length
2 x upper mounting brackets with gland seal
2 x lower mounting brackets.

Product variants

Please check catalog for further information

9" X 9" Standard Mount 12V - Part no: 15000-101
9" X 12" Standard Mount 12V - Part no: 15001-101
9" X 18" Standard Mount 12V - Part no: 15002-101
9" X 24" Standard Mount 12V - Part no: 15003-101
9" X 30" Standard Mount 12V - Part no: 15004-101
9" X 36" Standard Mount 12V - Part no: 15005-101
12" X 12" Standard Mount 12V - Part no: 15007-101
12" X 18" Standard Mount 12V - Part no: 15008-101
12" X 24" Standard Mount 12V - Part no: 15009-101
12" X 30" Standard Mount 12V - Part no: 12010-101
12" X 36" Standard Mount 12V - Part no: 10211-101
9" X 12" Electro-polish Standard Mount 12V - Part no: 15113-101
12" X 12" Electro-Polish Standard Mount 12V - Part no: 15014-101

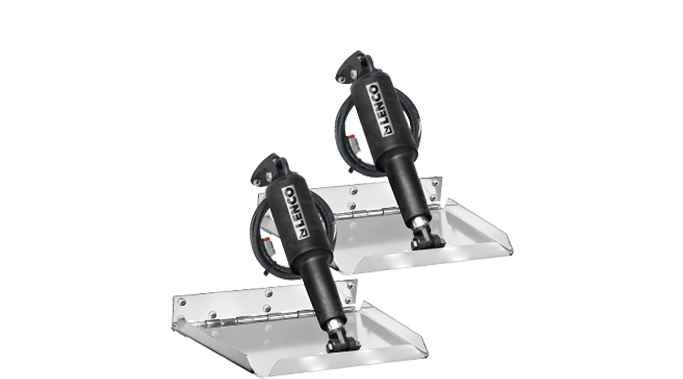

Edge Mount Trim Tab Kits (12V)

Part number: 15013-101

Designed for boats where a lower actuator mount is desirable. Edges turned up for added strength.

Suitable for boat lengths 14' (4.3m) - 36' (11m) for Standard Finish, 14' (4.3m) - 30' (9.1m) for Electro-Polished.

Product details

2 x 12-gauge 304 stainless steel standard finish or electro-polished blades
2 x actuators with 6' (1.8 m) leads and Deutsch connectors
2 x actuator extension wiring harnesses - 20’ (6.1 m) length
2 x upper mounting brackets with gland seal
2 x lower mounting brackets.

Product variants

Please check catalog for further information

9" X 9" Edge Mount 12V - Part no: 15013-101
9" X 12" Edge Mount 12V - Part no: 15014-101
12" X 9" Edge Mount 12V - Part no: 15015-101
12" X 12" Edge Mount 12V - Part no: 15016-101
12" X 18" Edge Mount 12V - Part no: 15017-101
12" X 9" Electro-Polish Edge Mount 12V - Part no: 15115-101
12" X 12" Electro-Polish Edge Mount 12V - Part no: 15116-101

Heavy Duty (HD) Performance Trim Tab Kits (12V)

Part number: 15041-101

Built for boats that need extra strength to support them in adverse conditions at higher speeds.

Suitable for boat lengths 18' (5.5m) - 42' (12.8m).

Product details

2 x 12-gauge 304 stainless steel Electro-Polished blades
2 x XD Extreme Duty actuators with 6’ (1.8 m) leads & Deutsch connectors
2 x actuator extension wiring harnesses - 20’ (6.1 m) length
Note: Boat-mounting hardware to be supplied by the customer.

Product variants

Please check catalog for further information

12" X 12" Heavy Duty (HD) Performance 12V - Part no: 15041-101
14" X 12" Heavy Duty (HD) Performance 12V - Part no: 15042-101
16" X 12" Heavy Duty (HD) Performance 12V - Part no: 15043-101
18" X 14" Heavy Duty (HD) Performance 12V - Part no: 15044-101

Extreme Duty (XD) Performance (Single and Dual) Trim Tab Kits (12V)

Part number: 15046-101

The XD Series with thicker and stronger blades and XD actuators, is designed for larger, faster boats that don't back away from rough sea conditions.

Suitable for boat lengths 20' (6.1m) - 40' (12.2m) (Single), 23' (7m) - 50' (15.2m) (Dual).

Product details

2 x 10-gauge 304 stainless steel Electro-Polished blades
2 (Single) or 4 (Dual) x XD Extreme Duty actuators with 6’ (1.8 m) leads & Deutsch connectors
Note: Boat-mounting hardware to be supplied by the customer
Note: Actuator extension harnesses not in kits, must be purchased separately (2 (Single) 4 (Dual) required).

Product variants

Please check catalog for further information

12 Volt / Single Actuator:

17" x 12" Electro-Polish Extreme Duty (XD) Performance 12V - Part no: 15045-101

12 volt Dual Actuator:

19" x 14" Electro-Polish Extreme Duty (XD) Performance 12V - Part no: 15046-101
24" x 14" Electro-Polish Extreme Duty (XD) Performance 12V - Part no: 15047-101

High Performance (Single and Dual) Trim Tab Kits (12V)

Part number: 15050-101

A kit with contoured blades designed to decrease cavitation, for multiple engine applications with limited transom space available. Single and Dual Actuator options.

Suitable for boat lengths 16 (4.9m) - 40' (12.2m) (Single), 24' (7.3m) - 52' (15.8m) (Dual)

Product details

2 x 10-gauge 304 stainless steel Electro-Polished blades
2 (Single) or 4 (Dual) x XD Extreme Duty actuators with 6’ (1.8 m) leads & Deutsch connectors
Note: Boat-mounting hardware to be supplied by the customer
Note: Actuator extension harnesses not in kits, must be purchased separately (2 (Single) 4 (Dual) required).

Product variants

Please check catalog for further information
12 volt: Single Actuator:

14" x 12" High Performance (HP)- Single Actuator 12V - Part no: 15048-101
18" x 12" High Performance (HP) - Single Actuator 12V - Part no: 15049-101

12 Volt / Dual Actuator:

21" x 14" High Performance (HP) - Dual Actuator 12V- Part no: 15050-101
25" x 14" High Performance (HP) - Dual Actuator 12V - Part no: 15051-101
29" x 14" High Performance (HP) - Dual Actuator 12V - Part no: 15068-101

Additional 100 Series Trim Tab Kit Options

Airboat 12V Trim Tab Kit

The world’s first Airboat specific design. The planing surface provides greater lift and less drag. Engineered to prevent the tab from digging in during hard turns resulting in a safer ride.

View catalog

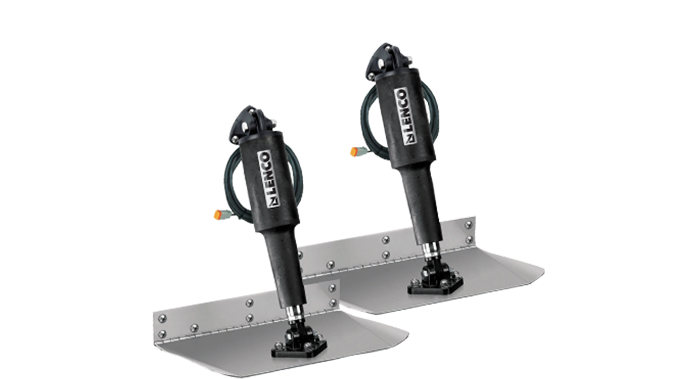

Standard Trim Tab Kits (switch included)

Everything you need in one box! The Standard Mount Trim Tab Kit includes an option of switches and all required mounting equipment.

View catalog

Complete edge mount trim tab kit (switch included)

Edge Mount Trim Tab Kits (switch included)

Everything you need in one box! The Edge Mount Trim Tab kit includes an option of switches and all required mounting equipment.

View catalog

Hybrid Trim Tab - (12V & 24V)

Designed to combine the benefits of our LS and Super Strong series with double the actuator support for larger, faster boats.

View catalog

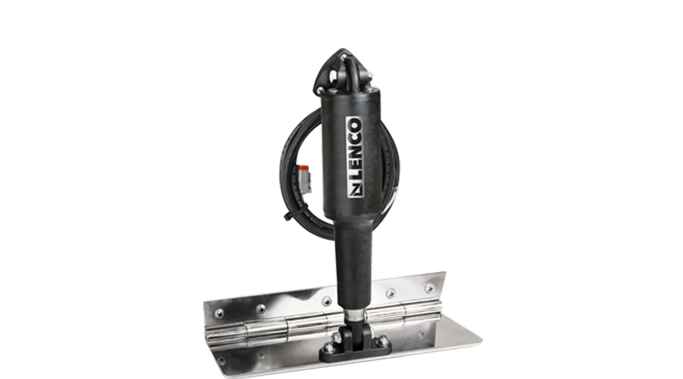

Limited Space (LS) Trim Tab Kit (12V)

The world’s first Airboat specific design. The planing surface provides greater lift and less drag. Engineered to prevent the tab from digging in during hard turns resulting in a safer ride.

View catalog

Standard Performance Trim Tab Kits (12V)

Our first series designed specifically for performance, featuring a thicker reinforced hinge and Electro-Polished finish for added quality and protection.

View catalog

Super Strong Dual Actuator Trim Tab Kits (12V & 24V)

This series features a longer blade design with dual actuator support for large vessels needing that extra lift.

View catalog

Explore replacement parts and Trim Tab accessories

View catalog

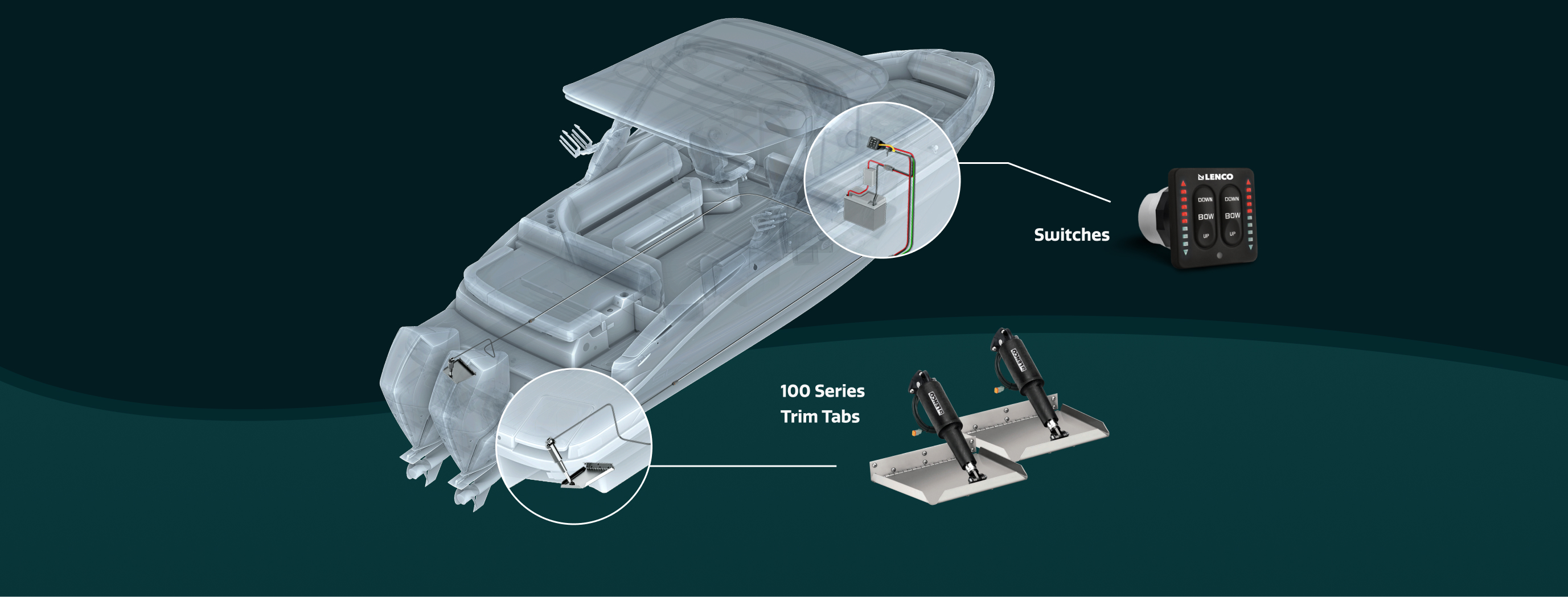

Lenco 100 series system overview diagram — 100 Series System Overview

Find the right Trim Tab Kit.

Choose the best kit for your boat type.

Begin quiz

Standard Mount Trim Tab Kits (switch included)

Part number: 15101-104

Everything you need in one box! The Standard Mount Trim Tab Kit includes an option of switches and all required mounting equipment.

View catalog Resources

High Performance (Single and Dual) Trim Tab Kits (12V)

Part number: 15050-101

A kit with contoured blades designed to decrease cavitation, for multiple engine applications with limited transom space available. Single and dual actuator options.

Suitable for boat lengths 16 (4.9m) - 40' (12.2m) (Single), 24' (7.3m) - 52' (15.8m) (Dual)

View catalog Resources

Super Strong Dual Actuator Trim Tab Kits (12V & 24V)

Part number: 15022-101

This series features a longer blade design with dual actuator support for large vessels needing that extra lift.

View catalog Resources

Hybrid Trim Tab - (12V & 24V)

Part number: 15145-101

Designed to combine the benefits of our LS and Super Strong series with double the actuator support for larger, faster boats.

View catalog Resources

Edge Mount Trim Tab Kits (switch included)

Part number: 15102-104

Everything you need in one box! The Edge Mount Trim Tab Kit includes an option of switches and all required mounting equipment.

View catalog Resources

Extreme Duty (XD) Performance (Single and Dual) Trim Tab Kits (12V)

Part number: 15046-101

Designed for boats where a lower actuator mount is desirable. Edges turned up for added strength.

Suitable for boat lengths 14' (4.3m) - 36' (11m) for Standard Finish, 14' (4.3m) - 30' (9.1m) for Electro-Polished.

View catalog Resources

Heavy Duty (HD) Performance Trim Tab Kits (12V)

Part number: 15041-101

Built for boats that need extra strength to support them in adverse conditions at higher speeds.

Suitable for boat lengths 18' (5.5m) - 42' (12.8m).

View catalog Resources

High Performance (Single and Dual) Trim Tab Kits (12V)

Part number: 15050-101

A kit with contoured blades designed to decrease cavitation, for multiple engine applications with limited transom space available. Single and dual actuator options.

Suitable for boat lengths 16 (4.9m) - 40' (12.2m) (Single), 24' (7.3m) - 52' (15.8m) (Dual)

View catalog Resources

Standard Performance Trim Tab Kits (12V)

Part no: 15112-101

The world’s first Airboat specific design. The planing surface provides greater lift and less drag. Engineered to prevent the tab from digging in during hard turns resulting in a safer ride.

View catalog Resources

Standard Mount Trim Tab Kits (switch included)

Part number: 15101-104

Everything you need in one box! The Standard Mount Trim Tab Kit includes an option of switches and all required mounting equipment.

View catalog Resources

Pro Control Auto Standard Mount Trim Tab Kits (12V)

Part number: 15182-107

Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water.

Suitable for boat lengths from 16' (4.9m) - 30' (9.1m)

View catalog Resources

Pro Control Auto Edge Mount Trim Tab Kits (12V)

Part number: 15186-107

Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water.

Suitable for boat lengths 17' (5.2m) - 30' (9.1m)

View catalog Resources

Frequently asked questions

Are Pro Control and 100 Series components compatiable?

No, each range has specific components that are only compatiable with individual Pro Control and 100 Series systems.

Do I need anodes on my trim tabs?

Anode use highly recommended, even if your boat is kept on a trailer, boat lift, or dry stack facility. Install the appropriate anode based on the type of water you are boating in. This will assist with protecting your tabs from electrolysis. Saltwater = ZINC or ALUMIMUM, Fresh = MAGNESIUM or ALUMINUM, Brackish = ALUMINUM. Keep them clean and replace as needed.

Should I bottom paint my trim tabs?

Your trim tabs can be bottom painted with a good metal bonding bottom paint. This will inhibit the growth of marine biologics on your trim tab blades. DO NOT PAINT BETWEEN THE ANODE AND THE BLADE. Bottom paint is not a substitute for anode protection.

What is the difference between single and dual?

Single means 1 actuator per side. Dual means 2 actuators per side.

Will my pre-2017 100 Series switch work with my new style 100 Series control box?

If I have an pre-2017 switch (from 100 Series range), is the replacement sold now a direct fit? Are the hole sizes the same in the console?

The face plates are the same size, but mounting hole will need enlarged. Provided the old system was installed per our instructions, it’s designed to be a plug and play. The old-style switches had the 4 threaded studs on them.

Will a Flybridge 100 Series switch work at my lower helm?

No. The flybridge switch will get its permissions from the lower station keypad that allows it to function as it should.

Does Lenco manufacture OEM specialty trim tabs?

Yes. We build many special kits for many top of line boat builders. Please contact Customer Service for further information.

Can I buy directly from Lenco Marine?

We cannot sell factory direct. Please visit our find a dealer page to locate a retailer in your area.

How long is your warranty period?

Trim Tab Systems: 5 years from the original date of purchase. (Limited)
Ski/Wake/Tow Systems: 3 years from the original date of purchase.
Retro Fit Kits: 5 years from the original date of purchase.
Electric Hatch-Lift: 2 years from the original date of purchase.
Electrical Switches: 5 years from the original date of purchase.

card icon — Catalog

Explore the full range of Lenco marine products.

View catalog

Distributors

Lenco supplies marine products globally.

Find distributors

Contact us

Speak to the Lenco team about your needs.

Contact Lenco

Resources

Locate helpful documents, such as installation manuals.

View resources

LENCO TRIM TAB KITS

100 Series Trim Tab Kits

100 Series Trim Tab Kits

Standard Mount Trim Tab Kits (12V)

Edge Mount Trim Tab Kits (12V)

Heavy Duty (HD) Performance Trim Tab Kits (12V)

Extreme Duty (XD) Performance (Single and Dual) Trim Tab Kits (12V)

High Performance (Single and Dual) Trim Tab Kits (12V)

Additional 100 Series Trim Tab Kit Options

Explore replacement parts and Trim Tab accessories

100 Series System Overview

Find the right Trim Tab Kit.

Standard Mount Trim Tab Kits (switch included)

High Performance (Single and Dual) Trim Tab Kits (12V)

Super Strong Dual Actuator Trim Tab Kits (12V & 24V)

Hybrid Trim Tab - (12V & 24V)

Edge Mount Trim Tab Kits (switch included)

Extreme Duty (XD) Performance (Single and Dual) Trim Tab Kits (12V)

Heavy Duty (HD) Performance Trim Tab Kits (12V)

High Performance (Single and Dual) Trim Tab Kits (12V)

Standard Performance Trim Tab Kits (12V)

Standard Mount Trim Tab Kits (switch included)

Pro Control Auto Standard Mount Trim Tab Kits (12V)

Pro Control Auto Edge Mount Trim Tab Kits (12V)

Frequently asked questions

Catalog

Distributors

Contact us

Resources
