Lenco Trim Actuators
Friends speeding across water in a white and black powerboat at sunset

LENCO ACTUATORS

The core component of any trim tab system.

NEW

SD Pro

A core element of the Lenco Pro Control™ system is the SD Pro Actuator - engineered to offer best in-class connectivity, precise control and an unbeatable user experience.

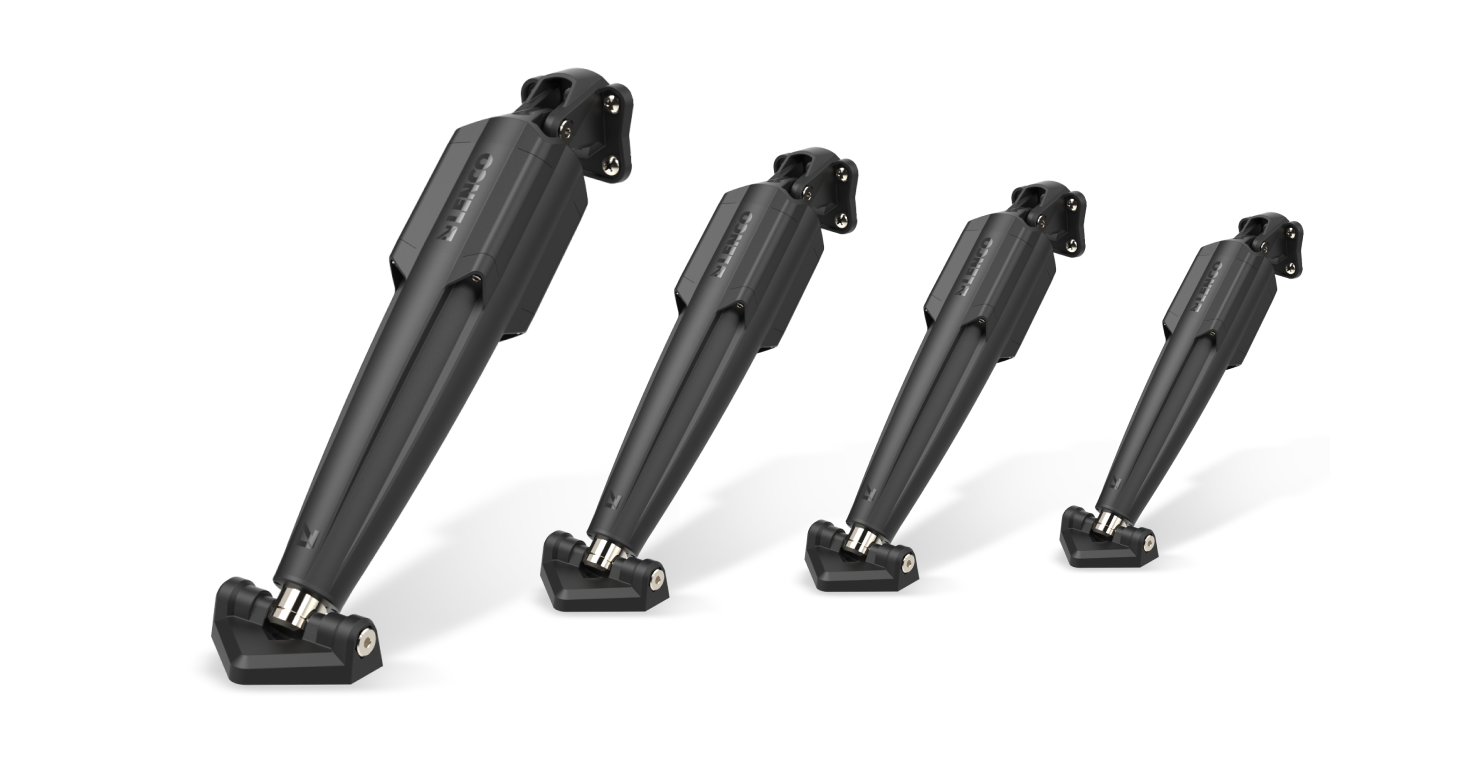

Lenco SD Pro Actuator

100 Series

Lenco’s core line up. Discover our legacy line up of Standard, XD and HD actuators for use with a wide variety of trim tab systems. Fully-submersible, maintenance-free, and backed by our full 5-year warranty.

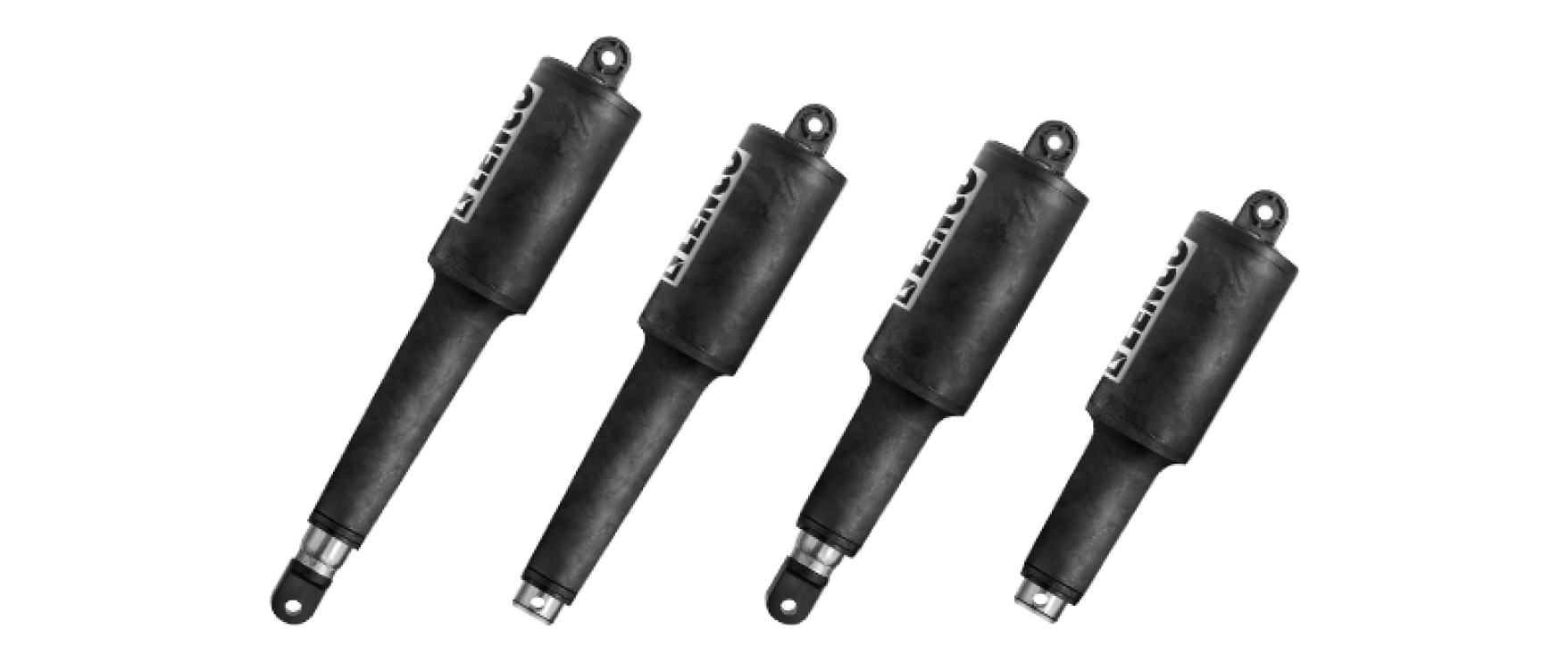

Lenco 100 Series Actuators

Our Actuators

Always precision-engineered for maximum accuracy.

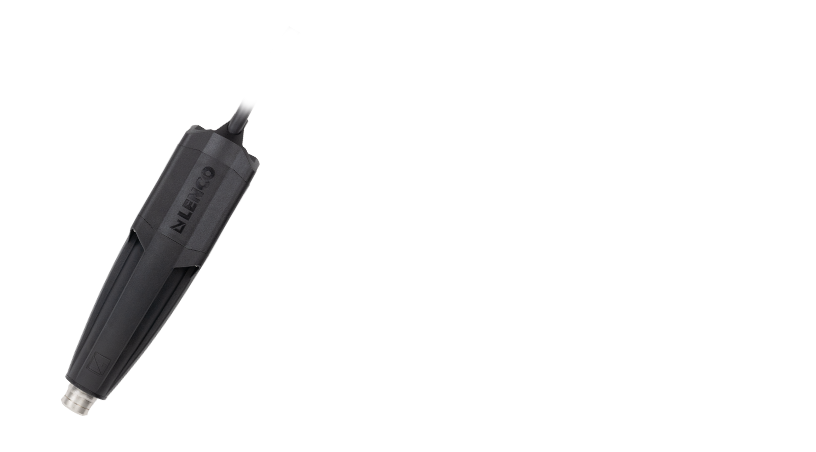

Lenco SD Pro Actuator

SD Pro Actuator

The cutting-edge actuator empowers boaters to create precise, repeatable wake. Best-in-class connectivity and total customization deliver an unbeatable user experience.

Product Details

  • Fast, precise, repeatasble wakes enabled through inductive sensors - within 1% accuracy

  • Seamless integration into surf systems, with CAN-based hardware enabling smart actuations via NMEA communication protocol

  • MFD Integration available

  • Simple installation and intuitive commissioning

  • Expanded Mercury integration, connecting directly with SmartCraft, providing improved and superior control logic
  • Fault and diagnostic capability with overload protection



Please Note: SD Pro Actuators are compatible with Pro Control Keypads only.

Product variants

  • SD Pro Actuator 10" Pin to Pin, 2-1/4 (5.72cm) Stroke  - Part no: 15187-001

  • SD Pro Actuator 10-1/2" Pin to Pin, 2-1/4 (5.72cm) Stroke - Part no: 15188-001

  • SD Pro Actuator 11-1/2" Pin to Pin, 2-1/4 (5.72cm) Stroke - Part no: 15189-001

  • SD Pro Actuator 12" Pin to Pin, 4-1/4 (10.8cm) Stroke - Part no: 15190-001

Related products
View catalog Resources

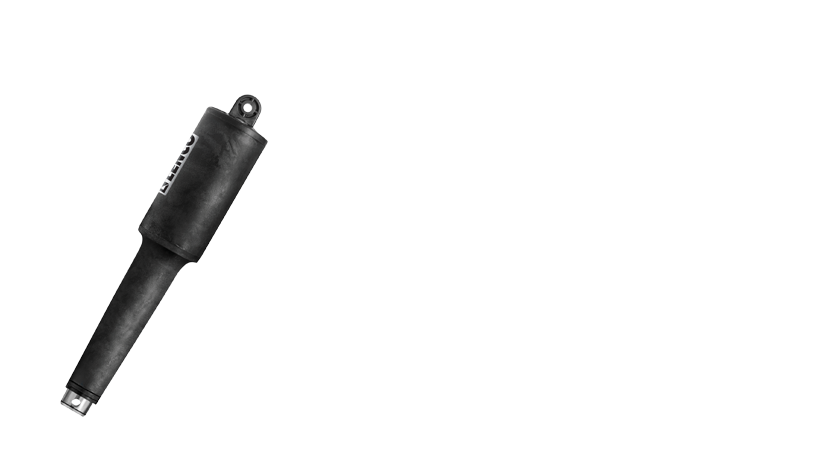

Lenco Touch 10 Generation 2 Actuator

101 Standard Actuator
(12V & 24V)

The 101 Actuator is used in all Standard, Edge Mount and Standard Performance kits.

2-1/4" Stroke (5.715 cm) - Overall length tip to tip = 12-1/2"

Product details

  • 5/16" mounting hardware

  • 6' cable

  • Ballscrew design is more reliable and twice as powerful compared to typical hydraulics compared to typical hydraulics

  • Lenco's tough, high-torque actuator motor easily pushes 500 lbs. (227 kg)

  • Waterproof plug and play Deutsch connectors eliminate the possibility of water intrusion.



Please Note: 100 Series Actuators are compatible with 100 Series controls and switches only.

Product variants

  • 101 Standard Actuator 2-1/4" (5.72cm) Stroke -12 Volt - Part no: 15054-001

  • 101 Standard Actuator 2-1/4" (5.72cm) Stroke - 24 Volt - Part no: 15061-001

Related products
View catalog Resources

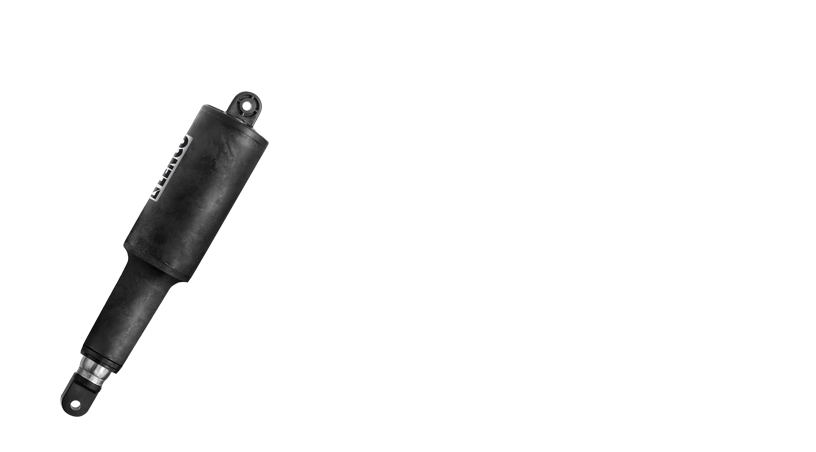

Lenco 101 XD Actuator -- 12 V and 24 V

101 XD Actuator
(12V & 24V)

The 101XD Actuator is used mostly with HD, XD, High Performance & Super Strong tabs.

2-1/4" Stroke (5.715 cm) - Overall length tip to tip = 11-3/8"

Product details

  • 5/16" mounting hardware

  • 6' cable

  • Ballscrew design is more reliable and twice as powerful compared to typical hydraulics

  • Lenco's tough, high-torque actuator motor easily pushes 500 lbs. (227 kg)

  • Waterproof plug and play Deutsch connectors eliminate the possibility of water intrusion.



Please Note: 100 Series Actuators are compatible with 100 Series controls and switches only.

Product variants

  • 101 XD Actuator 2-1/4" Stroke (5.72cm) 12 V - Part no: 15055-001

  • 101 XD Actuator 2-1/4" Stroke (5.72cm) 24V - Part no: 15062-001

  • 101 XD Actuator 2-1/4" Stroke (5.72cm) 12V - Part no: 15056-001

  • 101 XD Actuator 2-1/4" Stroke (5.72cm) 24V - Part no: 15063-001

  • 101 XD Actuator 2-1/4" Stroke (5.72cm) 12V - Part no: 15056-002

  • 101 XD Actuator 2-1/4" Stroke (5.72cm) 12V - Part no: 15063-002

Related products
View catalog Resources

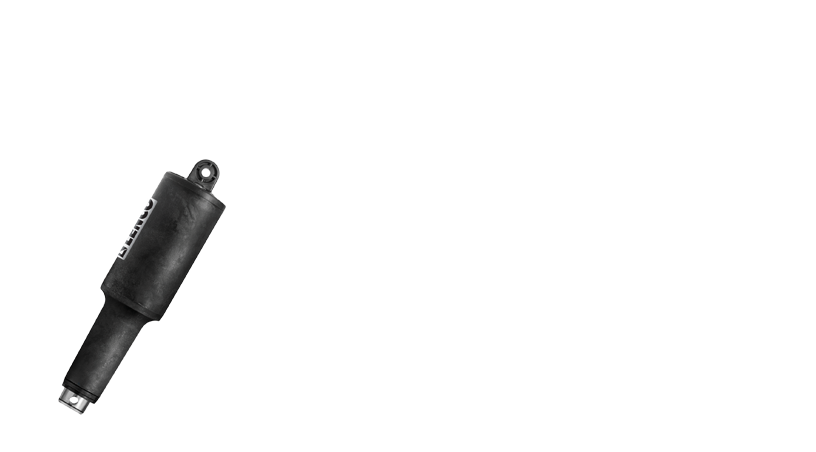

Lenco 101 XDS Actuator -- 12 V short actuator

101 XDS (Short Actuator) (12V)

The 101XDS Actuator is used with OEM specific kits & limited space applications; it is the shortest actuator we manufacture.

2-1/4" Stroke (5.715 cm) - Overall length tip to tip = 10-7/8"

Product details

  • 5/16" mounting hardware

  • 6' cable

  • Ballscrew design is more reliable and twice as powerful compared to typical hydraulics

  • Lenco's tough, high-torque actuator motor easily pushes 500 lbs. (227 kg)

  • Waterproof plug and play Deutsch connectors eliminate the possibility of water intrusion.



Please Note: 100 Series Actuators are compatible with 100 Series controls and switches only.

Product variants

  • 101 XDS (Short) Actuator 2-1/4" Stroke (5.72cm) - 12-Volt - Part no: 15057-001

  • 101 XDS (Short) Actuator 2-1/4" Stroke (5.72 cm) - 24-Volt - Part no: 15058-001

Related products
View catalog Resources

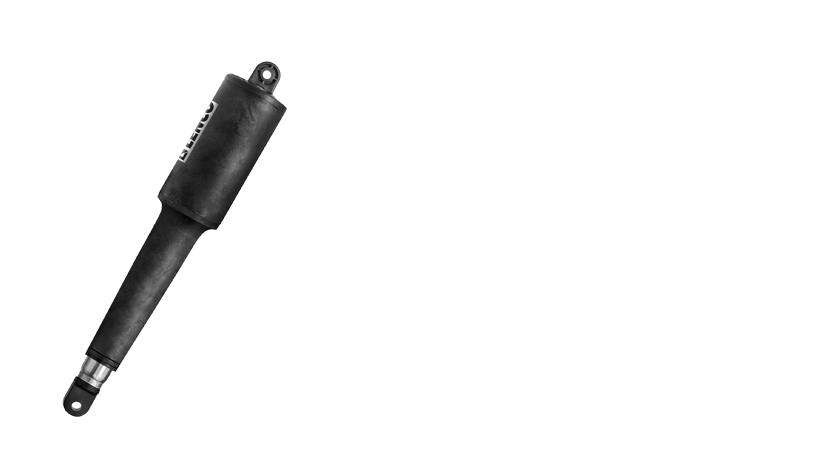

Lenco 102 Actuator

102 Actuator
(12V & 24V)

The 102 Actuator is used with Trolling Tab systems sold prior to 2000 and OEM applications.

4-1/4" Stroke (10.795 cm) - Overall length tip to tip = 14".

Product details

  • 5/16" mounting hardware

  • 6' cable

  • Ballscrew design is more reliable and twice as powerful compared to typical hydraulics

  • Lenco's tough, high-torque actuator motor easily pushes 500 lbs. (227 kg)

  • Waterproof plug and play Deutsch connectors eliminate the possibility of water intrusion.



Please Note: 100 Series Actuators are compatible with 100 Series controls and switches only.

Product variants

  • 102 Actuator 4-1/4" Stroke (10.8 cm) - 12-Volt - Part no: 15059-001

  • 102 Actuator 4-1/4" Stroke (10.8 cm) - 24-Volt - Part no: 15066-001

Related products
View catalog Resources
Lenco 102 HD Actuator

102 HD Actuator
(12V & 24V)

The 102 HD Actuator is used with Trolling Tab systems sold after 2000 and OEM applications.

4-1/4" Stroke (10.795 cm) - Overall length tip to tip = 13".

Product details

  • 5/16" mounting hardware

  • 6' cable

  • Ballscrew design is more reliable and twice as powerful compared to typical

  • hydraulics

  • Lenco's tough, high-torque actuator motor easily pushes 500 lbs. (227 kg)

  • Waterproof plug and play Deutsch connectors eliminate the possibility of water intrusion.



Please Note: 100 Series Actuators are compatible with 100 Series controls and switches only.

Product variants

  • 102 HD Actuator 4-1/4" Stroke (10.8 cm) - 12-Volt - Part no: 15060-001

  • 102 HD Actuator 4-1/4" Stroke (10.8 cm) - 24-Volt - Part no: 15131-001

Related products
View catalog Resources
Lenco 102 XD Actuator

102 XD Actuator (24V)

The 102 XD Actuator is used with Trolling Tab systems sold after 2000 and OEM applications.

4-1/4" Stroke (10.795 cm) - Overall length tip to tip = 13-1/4".

Product details

  • 5/16" mounting hardware

  • 6' cable

  • Ballscrew design is more reliable and twice as powerful compared to typical hydraulics

  • Lenco's tough, high-torque actuator motor easily pushes 500 lbs. (227 kg)

  • Waterproof plug and play Deutsch connectors eliminate the possibility of water intrusion.



Please Note: 100 Series Actuators are compatible with 100 Series controls and switches only.

Product variants

  • 102 XD Actuator 4-1/4" Stroke (10.8 cm) - 24-Volt - Part no: 15067-001

Related products
View Catalog Resources

Replacement parts and trim tab accessories

View catalog

Frequently asked questions

Are Pro Control and 100 Series components compatible?

No, each range has specific components that are only compatiable with individual Pro Control and 100 Series systems.

What is the difference between single and dual?

Single means 1 actuator per side. Dual means 2 actuators per side.

Will a 4-1/4 stroke actuator work with a 2-1/4 stroke Lenco switch?

No. The actuators have a rate of deployment of 1" every 2 seconds. The 2-1/4 stroke switch has been programmed to shut down after 4 seconds of continuous operation.

Will the Lenco Conversion Kit for Bennett Actuators work with the Bennett switches?

It will work with the standard Bennett rocker switch, but not the Bennett electronic switches. Upgrade further by adding any Lenco 100 Series Switch Kit.

Will my pre-2017 100 Series switch work with my new style 100 Series control box?

No. Switches and control boxes made prior to September 1st of 2017 have different software and they will not communicate properly with newer switch systems.

If I have an pre-2017 switch (from 100 Series range), is the replacement sold now a direct fit? Are the hole sizes the same in the console?

The face plates are the same size, but mounting hole will need enlarged. Provided the old system was installed per our instructions, it’s designed to be a plug and play. The old-style switches had the 4 threaded studs on them.

How long is your warranty period?
  • Trim Tab Systems: 5 years from the original date of purchase. (Limited)
  • Ski/Wake/Tow Systems: 3 years from the original date of purchase.
  • Retro Fit Kits: 5 years from the original date of purchase.
  • Electric Hatch-Lift: 2 years from the original date of purchase.
  • Electrical Switches: 5 years from the original date of purchase.
