Pro Control™ Auto. Nothing Comes Close.

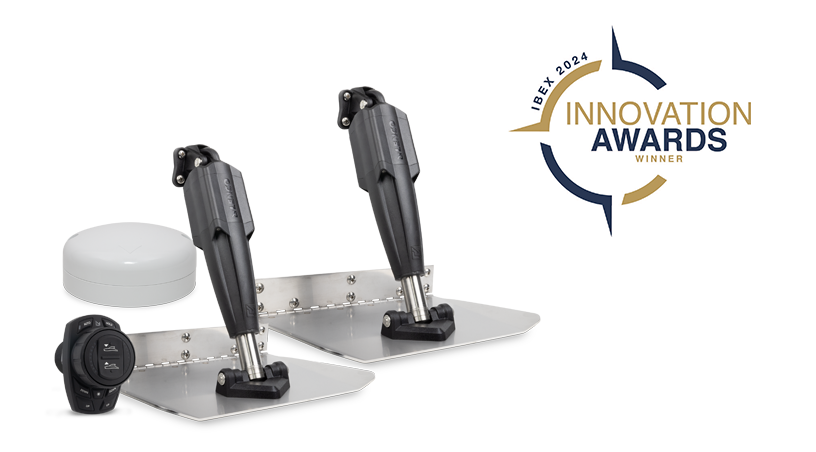

Meet the Award-Winning Pro Control Auto

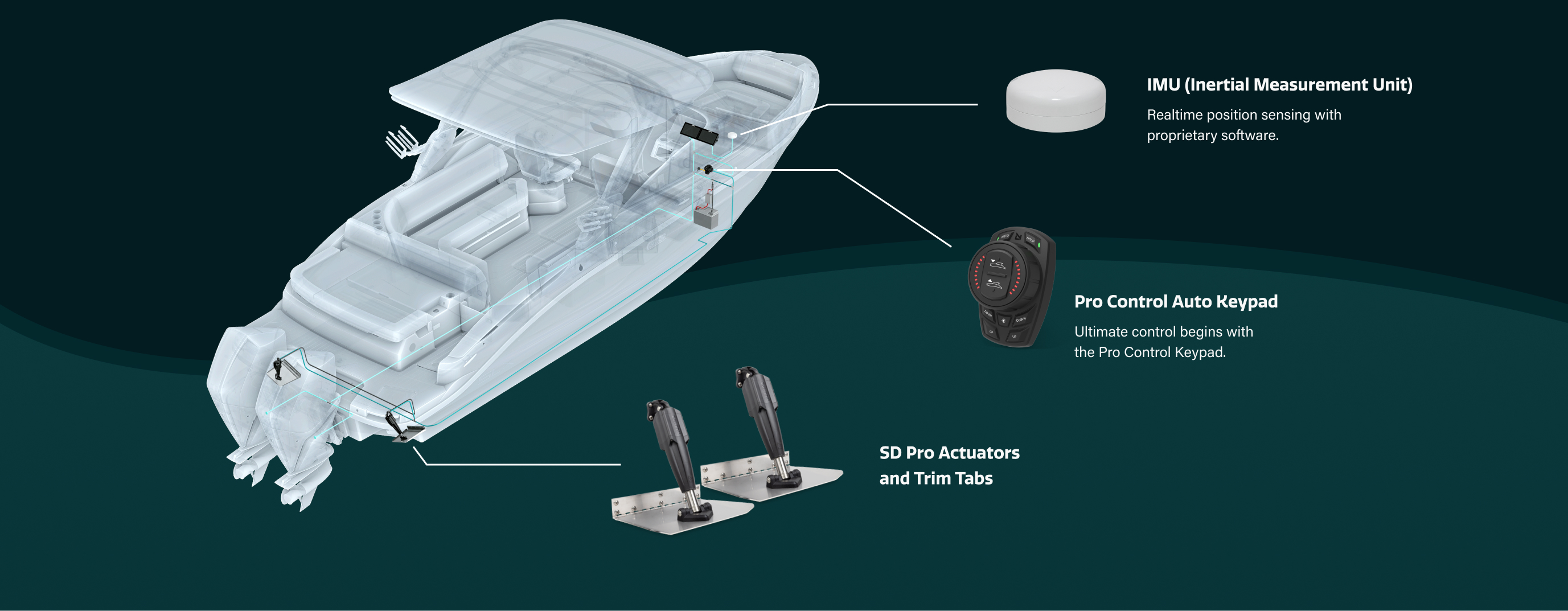

Pro Control Auto delivers industry-leading auto-leveling for unprecedented precision, control, and comfort on the water.
Limit Pitch & Roll with Pro Control™

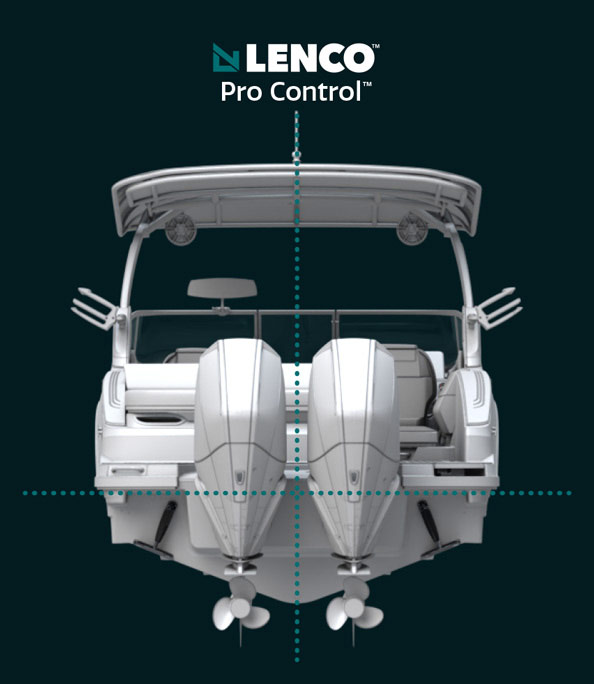

More Time Running Level
with Lenco Pro Control™
Level Roll
1%
Level Roll
Improvement*

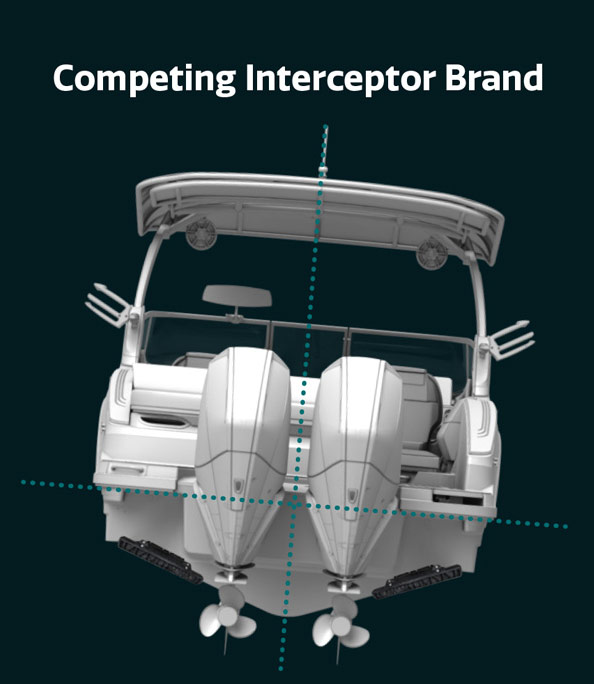

Studies conducted on two similarly equipped 22 ft center console boats of the same make and model showed that Lenco Pro Control improved level roll attainment by 54%. *vs Baseline Testing.

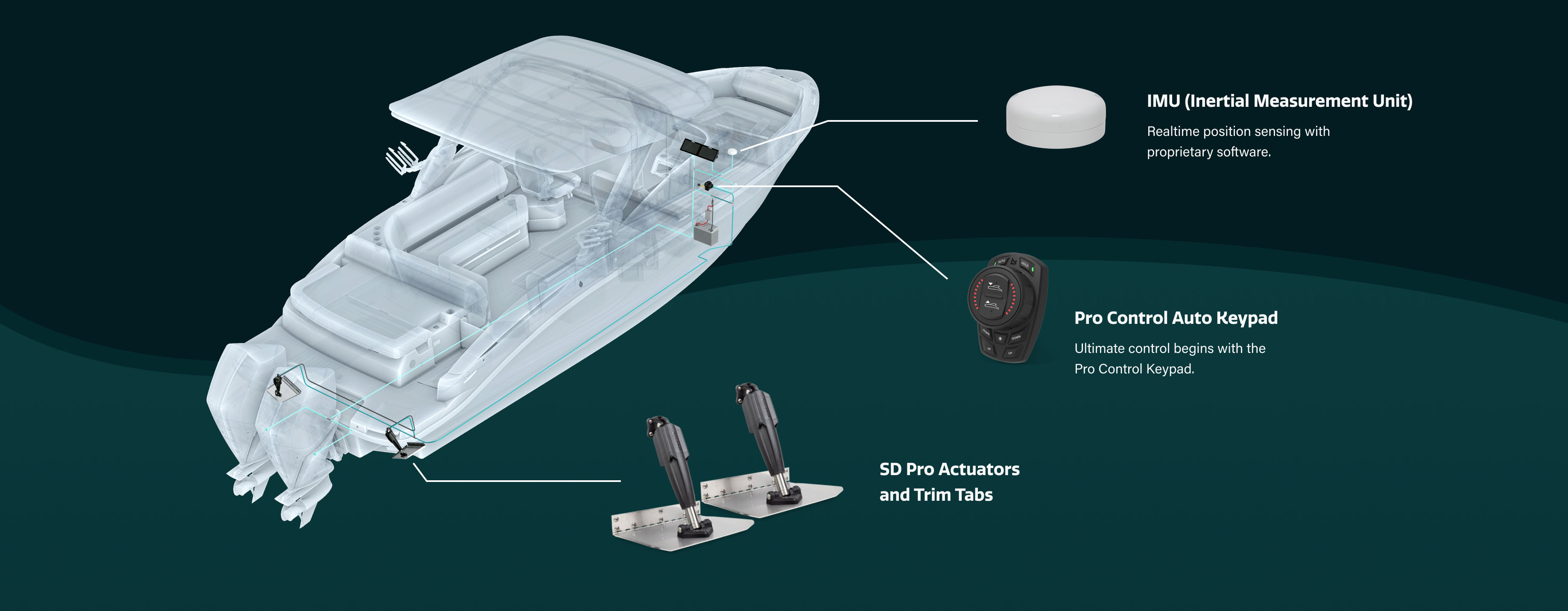

Lenco Pro Control High Performance Trim Tabs Increase Ride Quality
Slam no more.
24%* less impact.
Wave goodbye to the dreaded “thuds” and “slams” caused by impact, and move through water with unparalleled ease. Pro Control makes for a smoother, more comfortable and cushioned ride.
Confidence offshore.
Tame rough seas.
Have the confidence to cross the inlet and head out to deeper waters. Pro Control rivals far more expensive products when running offshore, delivering an impressive 15% pitch reduction* in dynamic seas.
React faster.
Control in an instant.
Fast response times provide enhanced control to the helm, making near-instant adjustments in response to dynamic sea conditions. In addition, improved hole-shot gets boaters on the plane faster, providing superior comfort and visibility sooner, with a rapid transition into auto-levelling.

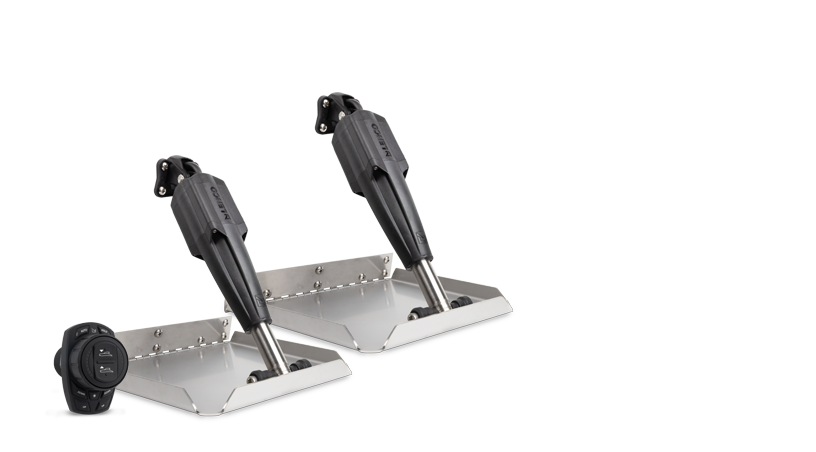

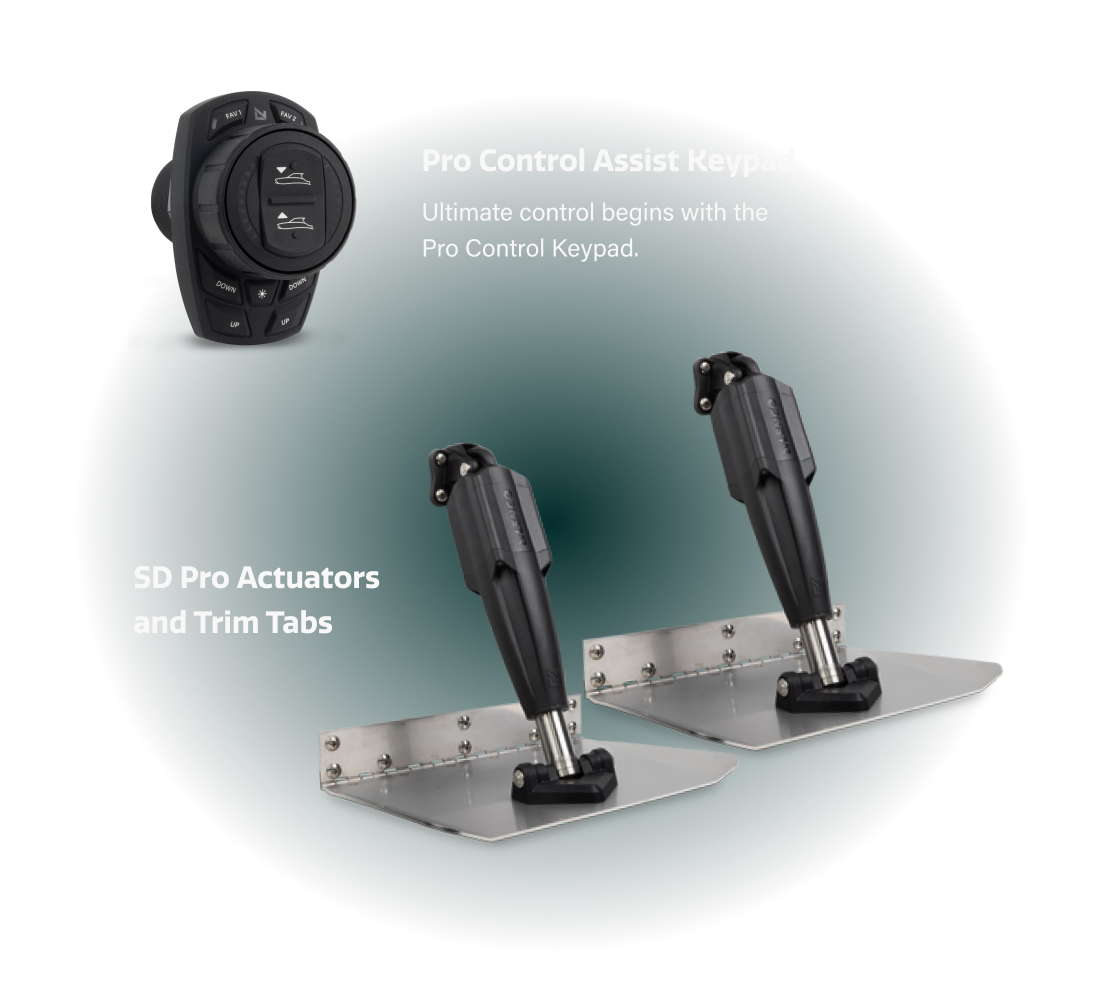

Meet Pro Control™ Assist
Manual control is in your hands. Pro Control Assist offers a manual control option, featuring a smart, sleek dial controller, designed to provide a class-leading user interface. Get all the benefits of Pro Control including holeshot assist, with NMEA 2000® connectivity and the ability to store preferred positions for your trim tabs.
Best-in-class 5-year warranty
Just because we’re more affordable doesn’t mean you have to compromise on build quality. The robust design and simple maintenance mean Pro Control is built to last. Which is why it’s backed by a full, best-in-class 5-year warranty, giving boatbuilders and end users unrivalled peace of mind.
Compare Pro Control models
Learn how Pro Control Auto and Pro Control Assist can help keep your vessel on an even keel.
Kit Type
Auto Pitch/Roll Hold
Manual Pitch/Roll Control
New Intuitive Controller
LED Position Indication
NMEA 2000 Integration
Flybridge Capability
IMU Included
Uses GPS Data
Planing Assist
Favorite Tab Retract
Adjustable Vessel Attitude Hold
User Sensitivity Adjustment
Service Tool Compatibility
Pro Control Assist
Pro Control Auto
Explore Pro Control Kits

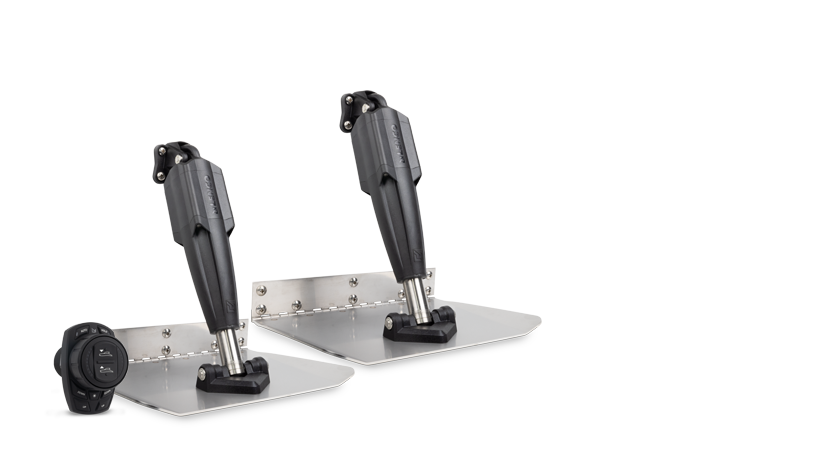

Pro Control Auto Standard Mount Trim Tab Kits (12V)
Part number: 15182-107
Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water.
Suitable for boat lengths from 16' (4.9m) - 30' (9.1m)
Product details
-
1 x Pro Control Auto Keypad (Connectivity - NMEA 2K, Lenco 2K, Mercury SmartCraft)
-
2 x 12-gauge 304 stainless steel standard finish blades
-
2 x 11-1/2" SD Pro Actuators with 6' (1.82m) leads and Deutsch connectors
-
2 x 3' (0.91m) Pro Control actuator power pigtail
-
2 x upper mounting brackets with gland seal
-
2 x Lower mounting brackets
-
2 x 2' (0.61m) Micro C Drop Cable
-
Lenco 2K backbone kit.
Product variants
Please check catalog for further information
-
9" X 12" Pro Control Auto Standard Mount 12V - Part no: 15182-107
-
12" X 12" Pro Control Auto Standard Mount 12V - Part no: 15184-107
- 9” x 12” Pro Control Auto Standard Mount 12V Electro-Polished- Part no: 15211-107
- 12” x 12” Pro Control Auto Standard Mount 12V Electro-Polished - Part no: 15213-107
Pro Control Auto Edge Mount Trim Tab Kits (12V)
Part number: 15186-107
Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water.
Suitable for boat lengths 17' (5.2m) - 30' (9.1m)
Product details
-
1 x Pro Control Auto Keypad (Connectivity - NMEA 2K, Lenco 2K, Mercury SmartCraft)
-
2 x 12-gauge 304 stainless steel standard finish blades
-
2 x 11-1/2" SD Pro Actuators with 6' (1.82m) leads and Deutsch connectors
-
2x 3' (0.91m) Pro Control actuator power pigtail
-
2 x upper mounting brackets with gland seal
-
2 x Lower mounting brackets
-
2 x 2' (0.61m) Micro C Drop Cable
-
Lenco 2K backbone kit.
Product variants
Please check catalog for further information
-
12" X 12" Pro Control Auto Edge Mount 12V - Part no: 15186-107
- 12” x 12” Pro Control Auto Edge Mount 12V Electro-Polished - Part no: 15215-107
Pro Control Assist Standard Mount Trim Tab Kits (12V)
Part number: 15181-106
Pro Control Assist is a manual version of our industry-leading trim tabs.
Suitable for boat lengths from 16' (4.9m) - 30' (9.1m)
Product details
-
1 x Pro Control Auto Keypad (Connectivity - NMEA 2K, Lenco 2K, Mercury SmartCraft)
-
2 x 12-gauge 304 stainless steel standard finish blades
-
2 x 11-1/2" SD Pro Actuators with 6' (1.82m) leads and Deutsch connectors
-
2x 3' (0.91m) Pro Control actuator power pigtail
-
2 x upper mounting brackets with gland seal
-
2 x Lower mounting brackets
-
2 x 2' (0.61m) Micro C Drop Cable
-
Lenco 2K backbone kit.
Product variants
Please check catalog for further information
-
9" X 12" Pro Control Assist Standard Mount 12V - Part no: 15181-106
-
12" X 12" Pro Control Assist Standard Mount 12V - Part no: 15183-106
- 9” x 12” Pro Control Assist Standard Mount 12V Electro-Polished- Part no: 15210-106
- 12” x 12” Pro Control Assist Standard Mount 12V Electro-Polished- Part no: 15212-106
Pro Control Assist Edge Mount Trim Tab Kits (12V)
Part number: 15185-106
Pro Control Assist is a manual version of our industry-leading trim tabs.
Suitable for boat lengths 17' (5.2m) - 30' (9.1m)
Product details
-
1 x Pro Control Auto Keypad (Connectivity - NMEA 2K, Lenco 2K, Mercury SmartCraft)
-
2 x 12-gauge 304 stainless steel standard finish blades
-
2 x 11-1/2" SD Pro Actuators with 6' (1.82m) leads and Deutsch connectors
-
2x 3' (0.91m) Pro Control actuator power pigtail
-
2 x upper mounting brackets with gland seal
-
2 x Lower mounting brackets
-
2 x 2' (0.61m) Micro C Drop Cable
-
Lenco 2K backbone kit.
Product variants
Please check catalog for further information
-
12" X 12" Pro Control Assist Edge Mount 12V - Part no: 15185-106
- 12” x 12” Pro Control Assist Edge Mount 12V Electro-Polished - Part no: 15214-106
Find the right Trim Tab Kit.
Choose the best kit for your boat type.
Super Strong Dual Actuator Trim Tab Kits (12V & 24V)
Part number: 15022-101
This series features a longer blade design with dual actuator support for large vessels needing that extra lift.
High Performance (Single and Dual) Trim Tab Kits (12V)
Part number: 15050-101
A kit with contoured blades designed to decrease cavitation, for multiple engine applications with limited transom space available. Single and dual actuator options.
Suitable for boat lengths 16 (4.9m) - 40' (12.2m) (Single), 24' (7.3m) - 52' (15.8m) (Dual)
Hybrid Trim Tab - (12V & 24V)
Part number: 15145-101
Designed to combine the benefits of our LS and Super Strong series with double the actuator support for larger, faster boats.
Standard Mount Trim Tab Kits (switch included)
Part number: 15101-104
Everything you need in one box! The Standard Mount Trim Tab Kit includes an option of switches and all required mounting equipment.
Replacement Parts & Trim Tab Accessories
Explore our range of parts and accessories.
Speak to Lenco
Reach out to the Lenco team to discuss your needs in more detail.
PRO CONTROL AUTO HOW TO VIDEOS

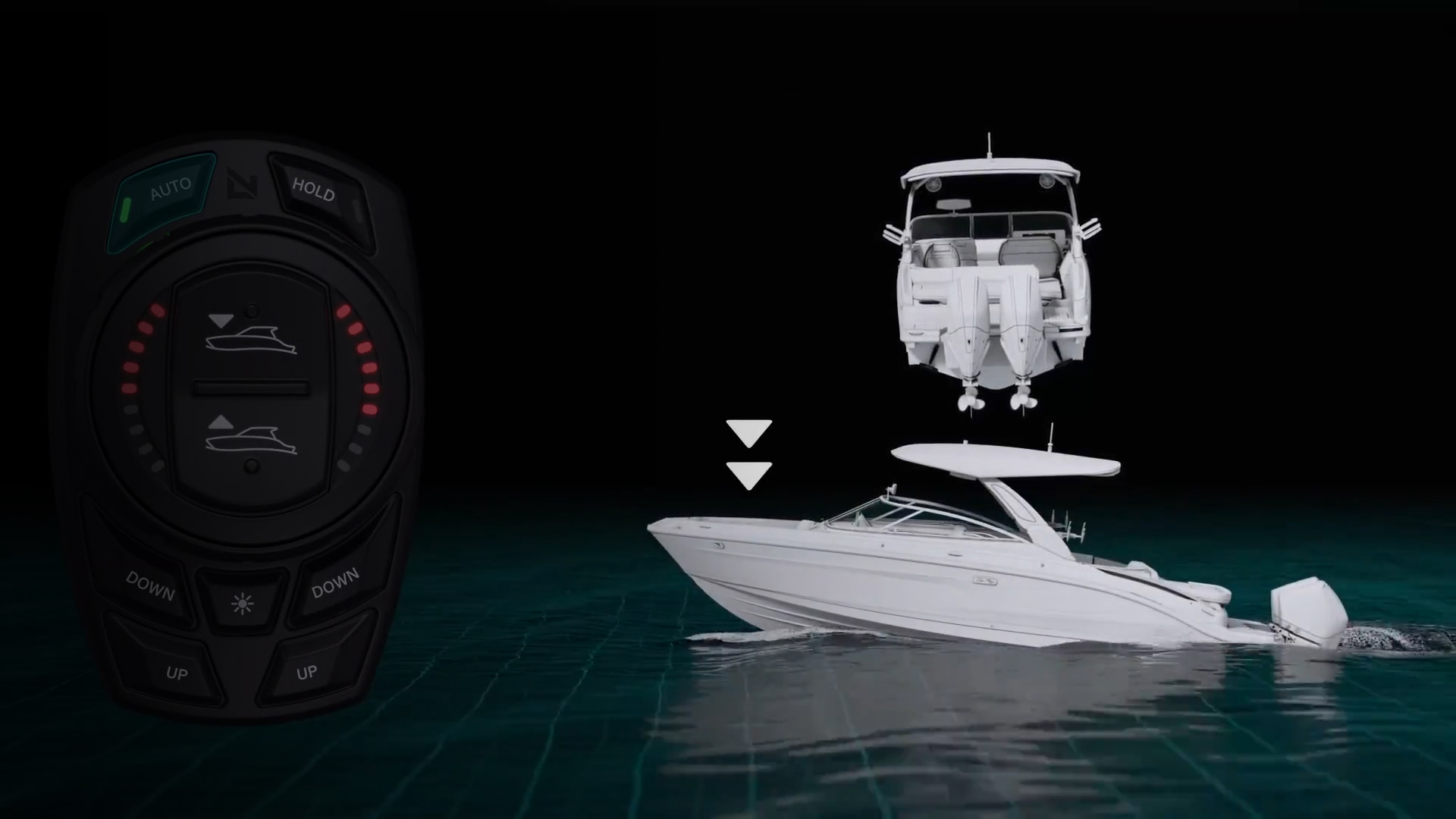

Pro Control Auto System - Full overview
HOW TO VIDEOS

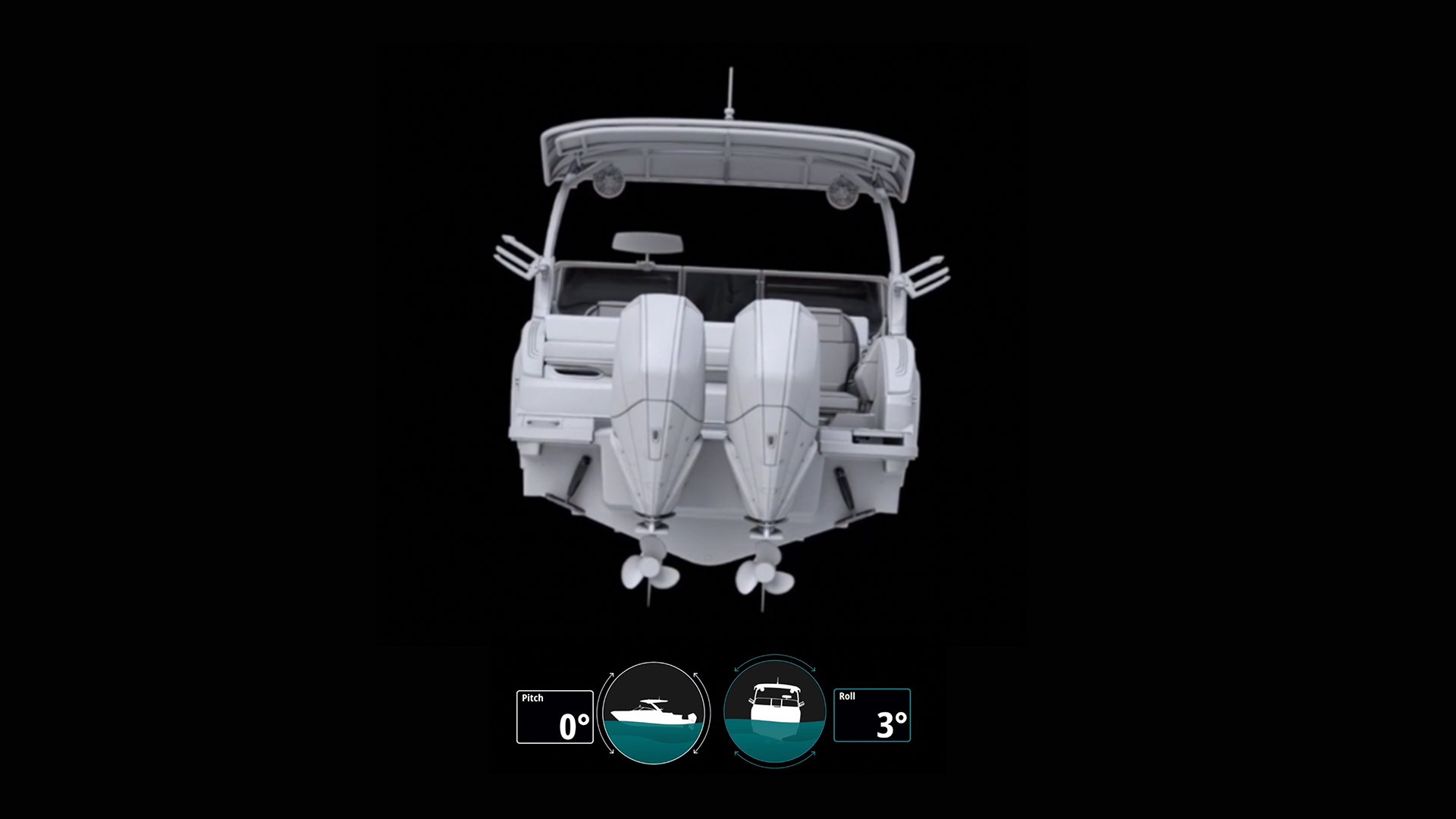

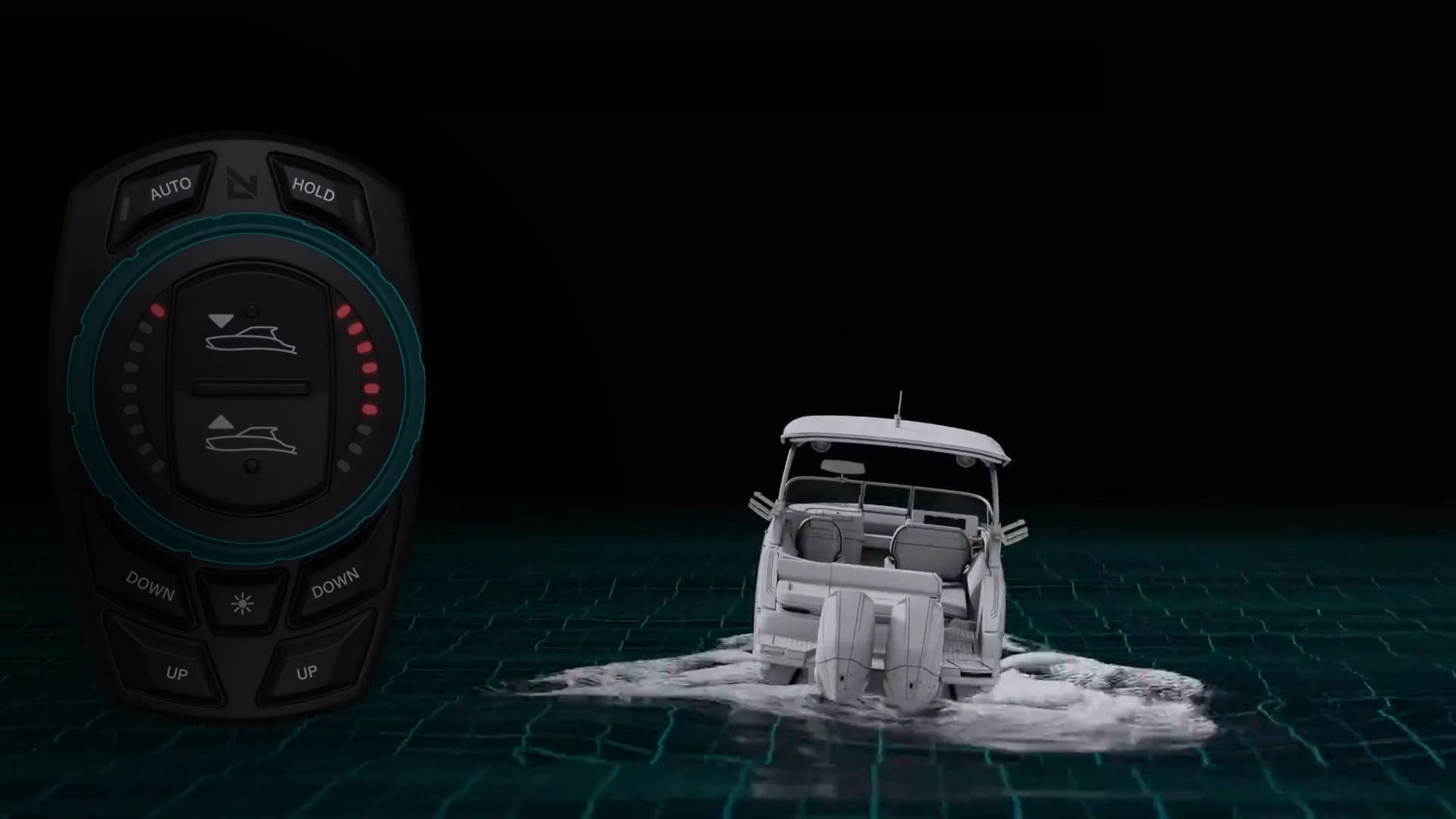

What is Pitch and Roll?
HOW TO VIDEOS

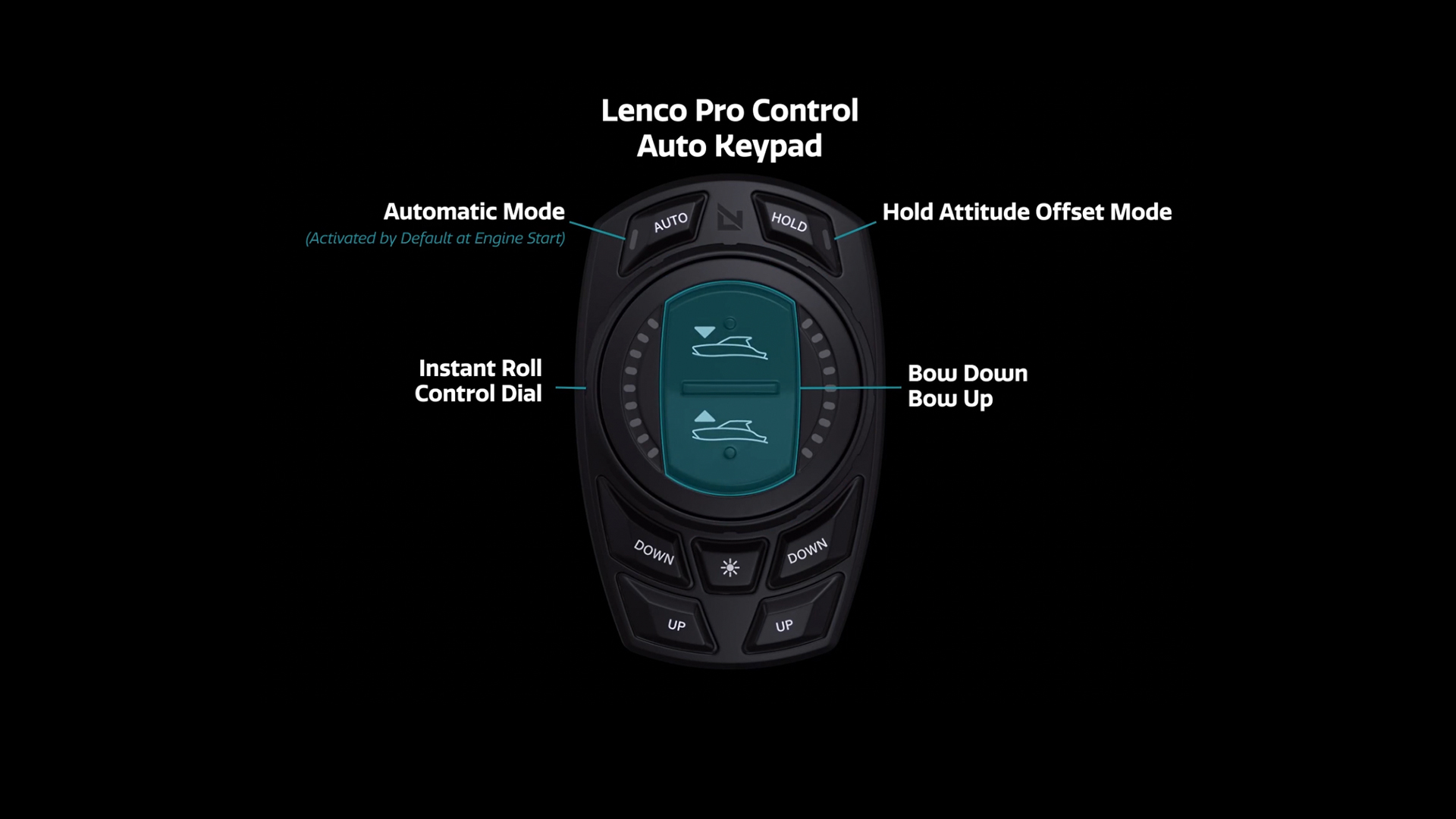

Lenco Pro Control System Overview
HOW TO VIDEOS

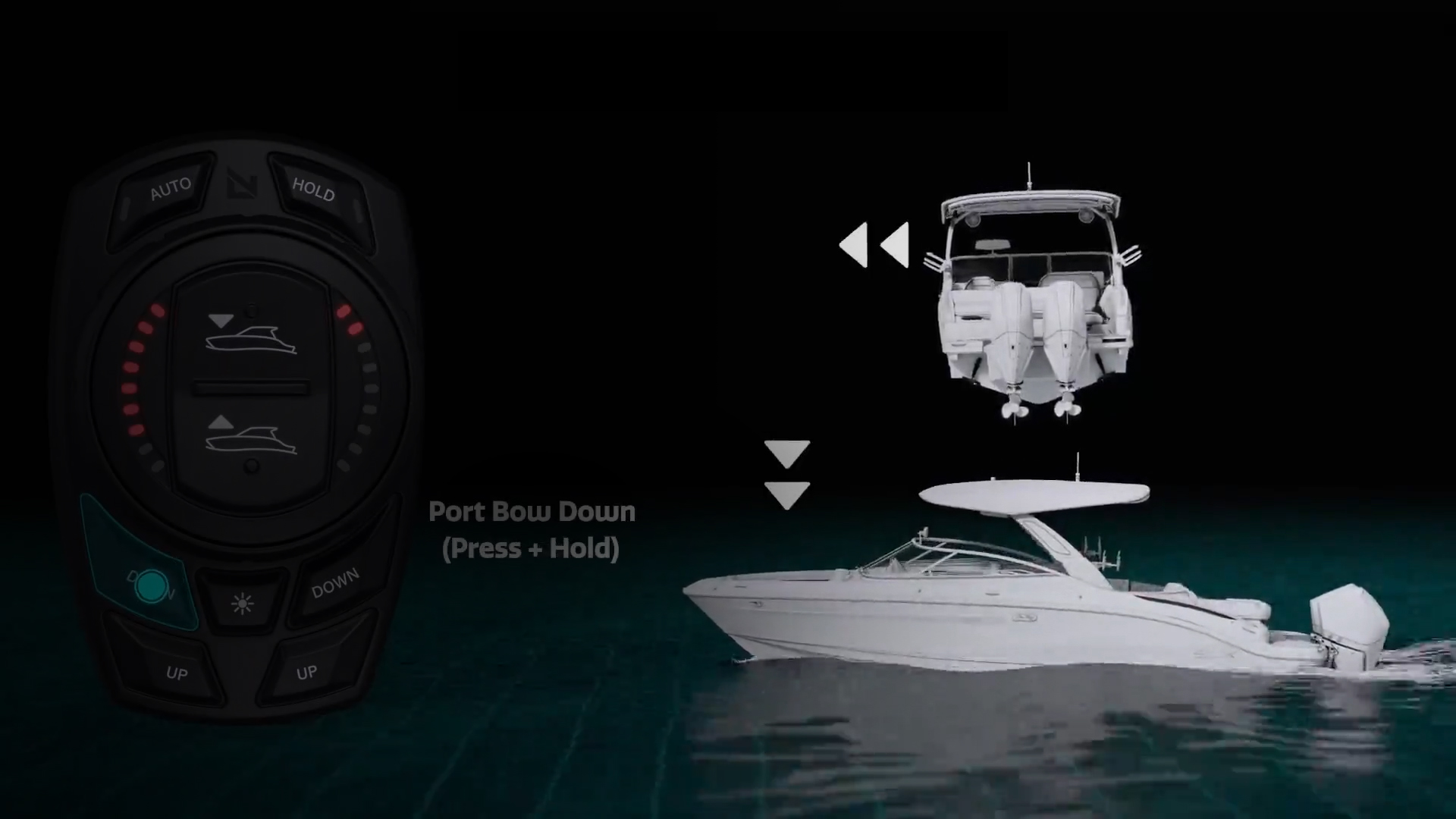

How to manually control roll
HOW TO VIDEOS

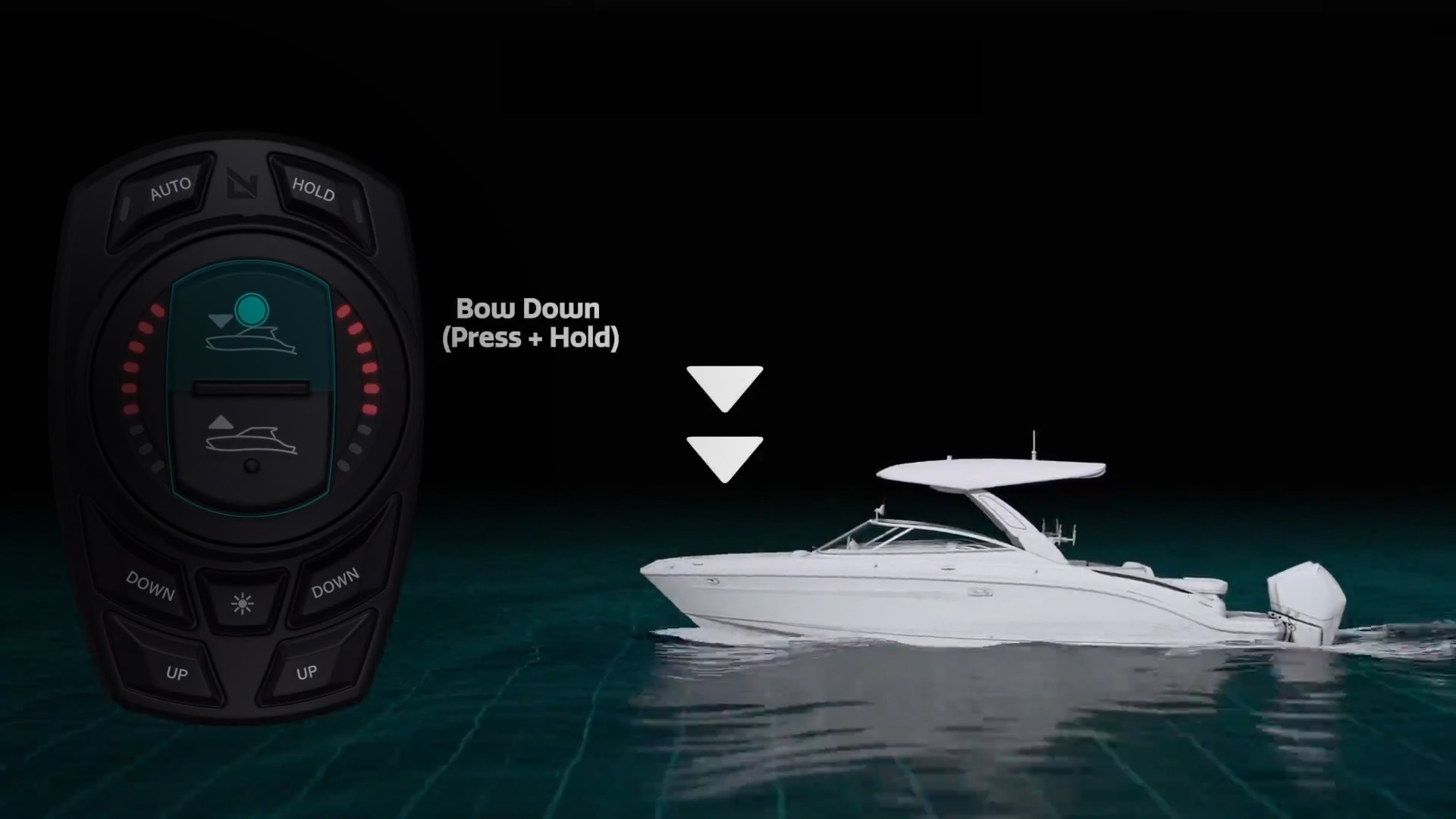

How to Manually Control Pitch
HOW TO VIDEOS
How to Manually Use Finite Controls
HOW TO VIDEOS
Auto Mode: Getting on Plane
HOW TO VIDEOS

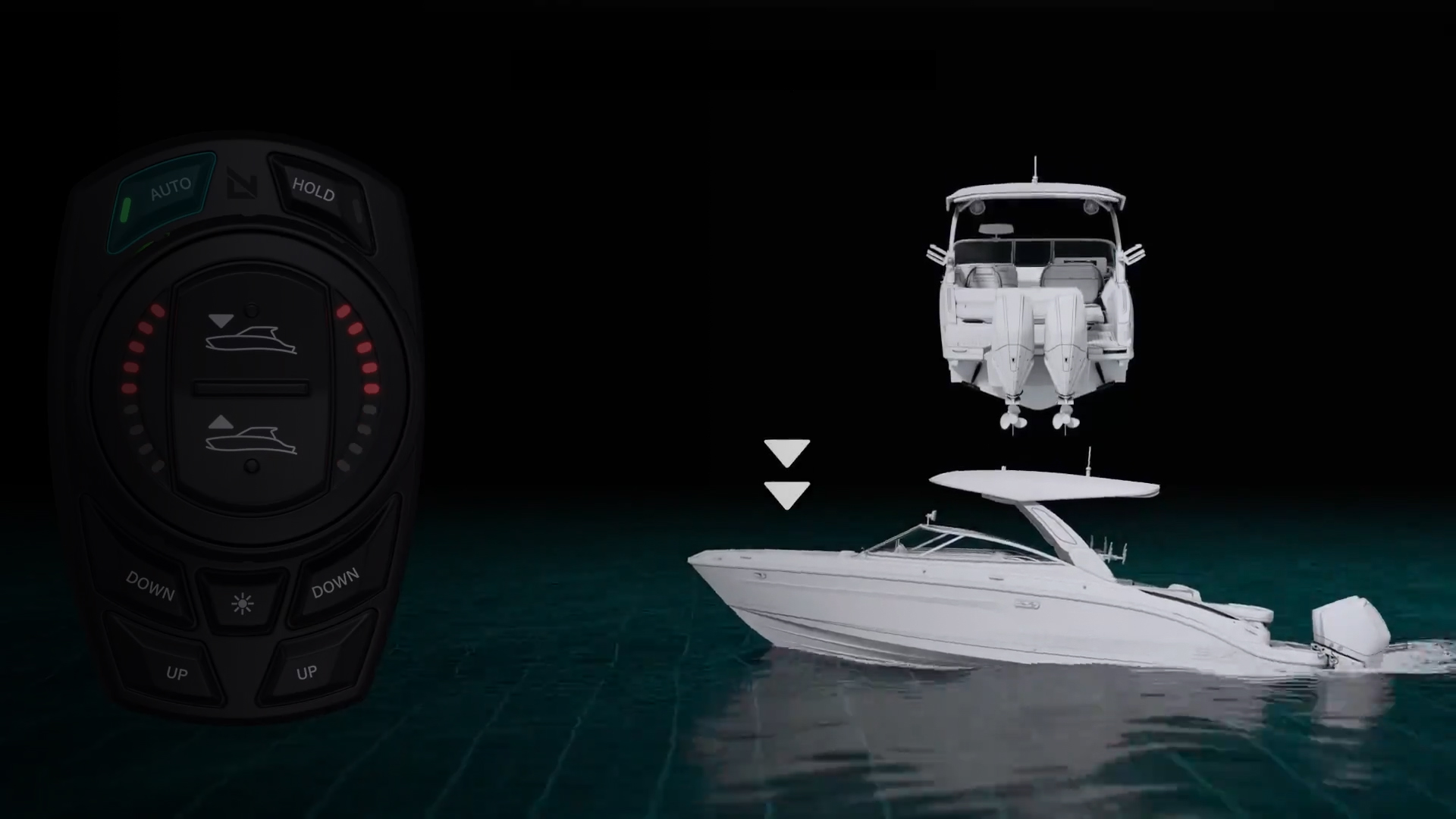

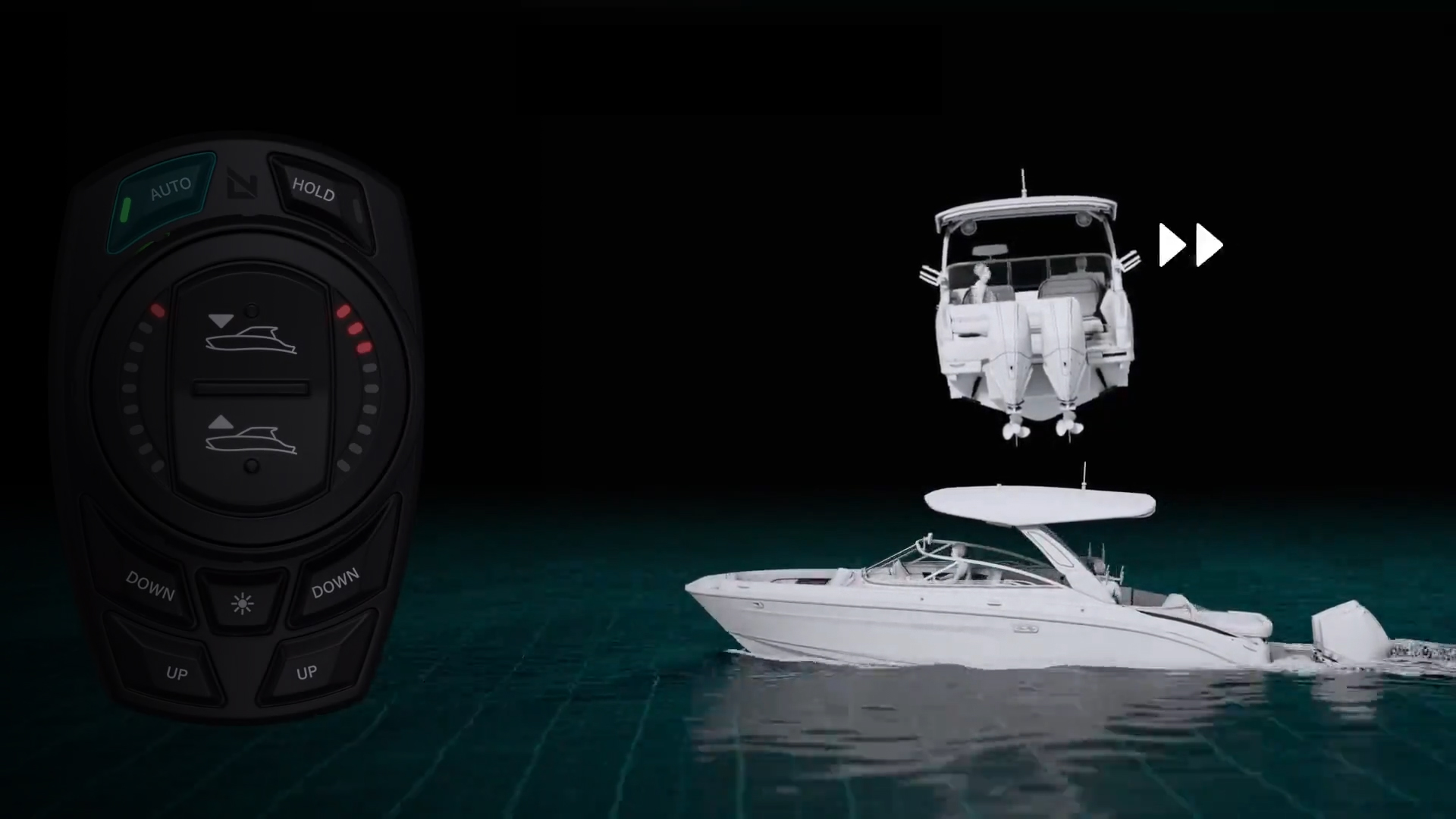

Auto Mode: Auto-Levelling
HOW TO VIDEOS
Auto Mode: Changing Target Attitude
HOW TO VIDEOS
Auto Mode: Coming Off Plane & Trim Tabs Retracting
Pro Control Auto System - Full overview
What is Pitch and Roll?
Lenco Pro Control System Overview
How to manually control roll
How to Manually Control Pitch
How to Manually Use Finite Controls
Auto Mode: Getting on Plane
Auto Mode: Auto-Levelling
Auto Mode: Changing Target Attitude
Auto Mode: Coming Off Plane & Trim Tabs Retracting
Frequently asked questions
Are Pro Control and 100 Series components compatible?
No, each range has specific components that are only compatiable with individual Pro Control and 100 Series systems.
Do I need anodes on my trim tabs?
Anode use highly recommended, even if your boat is kept on a trailer, boat lift, or dry stack facility. Install the appropriate anode based on the type of water you are boating in. This will assist with protecting your tabs from electrolysis. Saltwater = ZINC or ALUMIMUM, Fresh = MAGNESIUM or ALUMINUM, Brackish = ALUMINUM. Keep them clean and replace as needed.
Should I bottom paint my trim tabs?
Your trim tabs can be bottom painted with a good metal bonding bottom paint. This will inhibit the growth of marine biologics on your trim tab blades. DO NOT PAINT BETWEEN THE ANODE AND THE BLADE. Bottom paint is not a substitute for anode protection.
How do identify what Pro Control/SD Pro actuators I have?
Pro Control/SD Pro actuators can be identified by a 9-digit code stamped at the back of the motorhousing. Codes are as follows:
- 8M4009916 (10")
- 8M4012026 (10-1/2")
- 8M4012349 (11-1/2")
- 8M4009917 (12")
Does Lenco manufacture OEM specialty trim tabs?
Yes. We build many special kits for many top of line boat builders. Please contact Customer Service for further information.
Can I buy directly from Lenco Marine?
We cannot sell factory direct. Please visit our find a dealer page to locate a retailer in your area.
How long is your warranty period?
- Trim Tab Systems: 5 years from the original date of purchase. (Limited)
- Ski/Wake/Tow Systems: 3 years from the original date of purchase.
- Retro Fit Kits: 5 years from the original date of purchase.
- Electric Hatch-Lift: 2 years from the original date of purchase.
- Electrical Switches: 5 years from the original date of purchase.
